Product Description

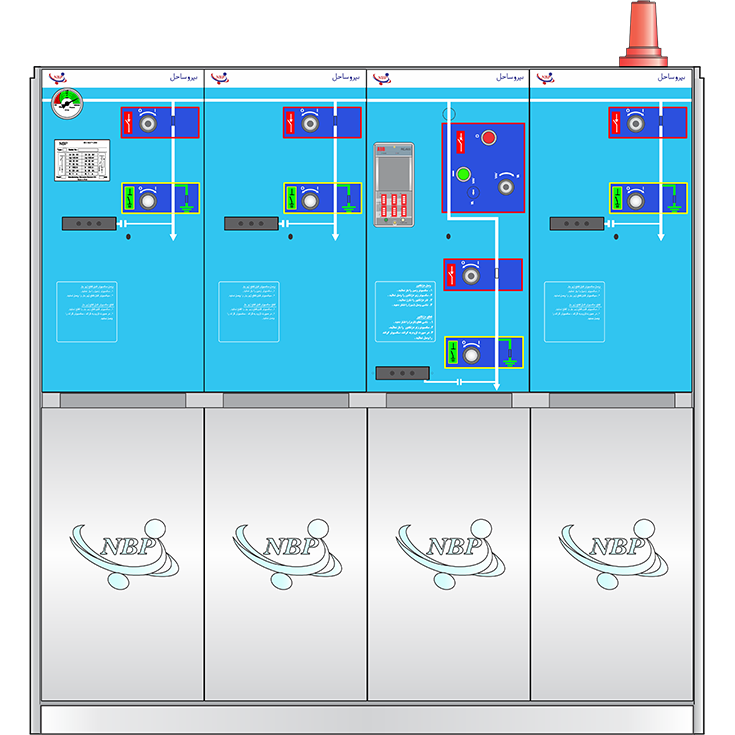

The LLVL module with right-hand flush mounting (TR) is a combination of two sectioning modules (L), one disconnector module (V) and one sectioning module (L) in an SF6 tank, designed for applications requiring three manual feeders and one protected feeder. With a height of 1465 mm and a weight of 457 kg, this product is a suitable option for spaces with limited height.
Full technical specifications
| Characteristic | Amount |
|---|---|
| Rated voltage | 12-24-33 kV |
| Rated current | 630-1250 amps |
| Rated frequency | 50 Hz |
| Tank protection level | IP67 |
| Door protection level | IP4X |
| Mechanism of action | Single spring lock |
| Number of modules | 4 (L + L + V + L) |
| Protective relay | Yes (on module V) |
| Gas pressure indicator | Yes |
| Capacitive voltage indicator | Yes |
| Operator category | Yes (for each module) |
| Pedal lock | Yes |
