Product Description

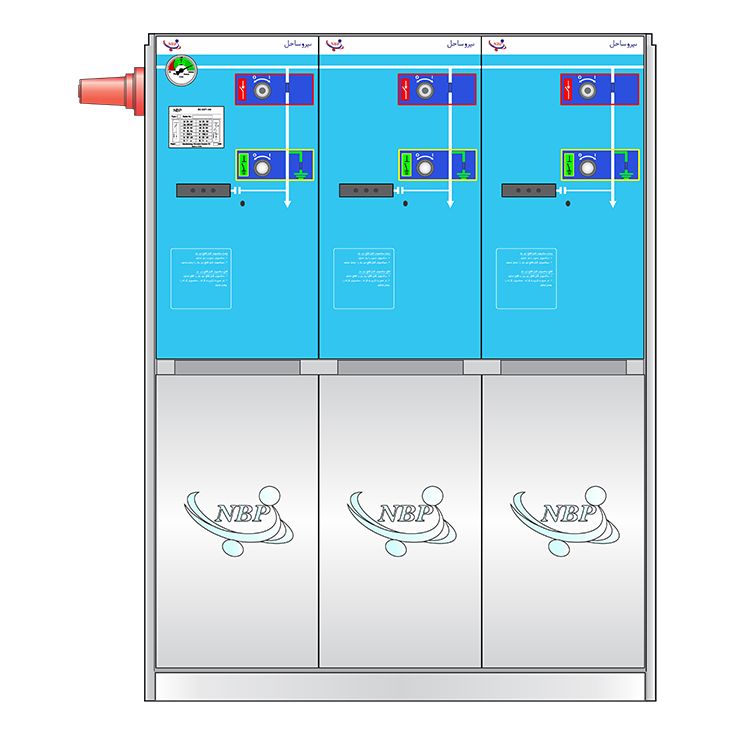

The three-section module (LLL) with left-standing (EL) mounting is a combination of three load break section modules (L) in an SF6 tank, designed for applications requiring three independent feeders. With a width of 1155 mm, this product provides more space for connections and expansion.
Full technical specifications
| Characteristic | Amount |
|---|---|
| Rated voltage | 12-24-33 kV |
| Rated current | 630-1250 amps |
| Rated frequency | 50 Hz |
| Tank protection level | IP67 |
| Door protection level | IP4X |
| Mechanism of action | Single spring lock |
| Number of modules | 3 (L + L + L) |
| Gas pressure indicator | Yes |
| Capacitive voltage indicator | Yes |
| Operator category | Yes (for each module) |
| Pedal lock | Yes |
