Product Description

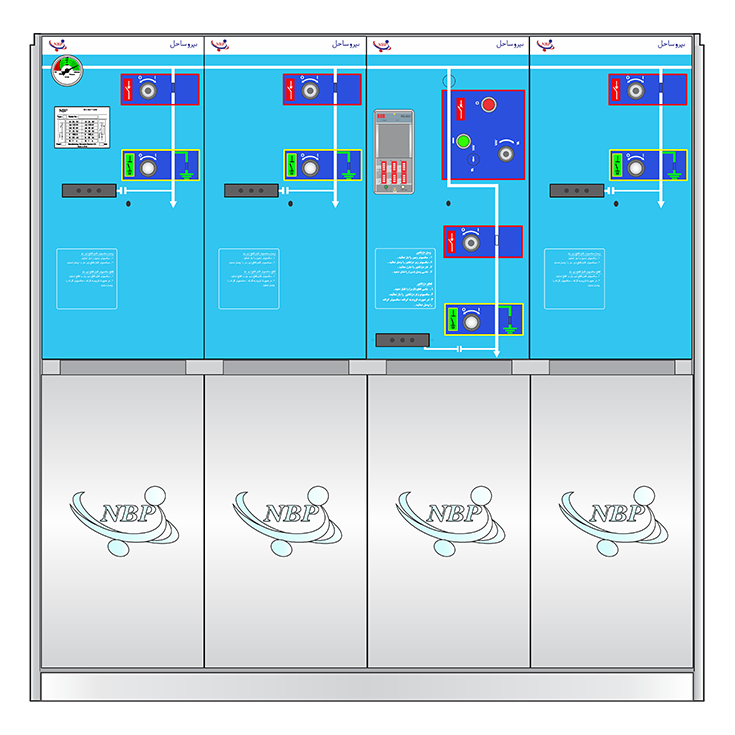

The LLVL module is a combination of two sectioning modules (L), one disconnector module (V) and one sectioning module (L) in an SF6 tank, designed for applications requiring three manual feeders and one protected feeder. This combination provides high flexibility in circuit management.
Full technical specifications
| Characteristic | Amount |
|---|---|
| Rated voltage | 12-24-33 kV |
| Rated current | 630-1250 amps |
| Rated frequency | 50 Hz |
| Tank protection level | IP67 |
| Door protection level | IP4X |
| Mechanism of action | Single spring lock |
| Number of modules | 4 (L + L + V + L) |
| Protective relay | Yes (on module V) |
| Gas pressure indicator | Yes |
| Capacitive voltage indicator | Yes |
| Operator category | Yes (for each module) |
| Pedal lock | Yes |
